Inside New York City’s Leaning Skyscraper – Engineering Failure

Manhattan is a city that worships gravity by defying it. For two centuries, it has pushed glass and steel higher into the clouds, each tower a promise that ambition can outrun physics.

But on a narrow lot beside the East River, in the shadow of the Brooklyn Bridge, stands a different kind of promise.

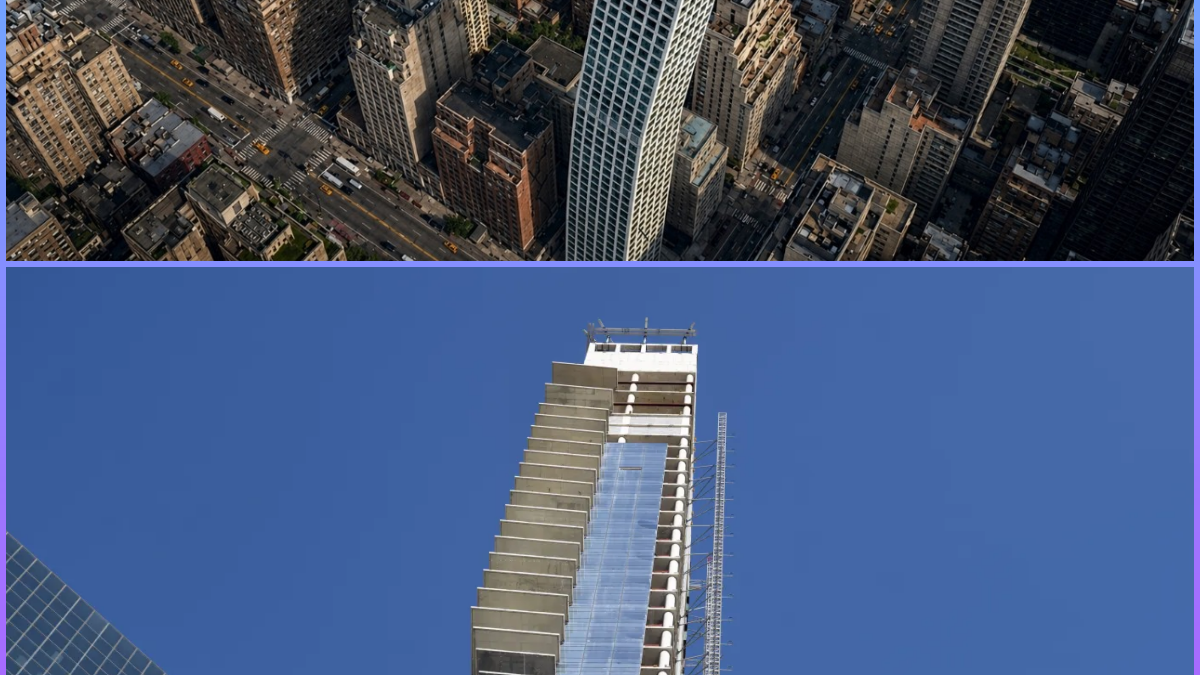

A 670-ft silhouette of unfinished glass and bare concrete, stained with graffiti the building’s own owners no longer bother to remove.

A tower that took almost 10 years to build, a tower that has never held a resident, a tenant, or a tour.

Why? Because it has been. Not tilted, not leaning, bent. By 2025, 161 Maiden Lane had consumed roughly $250 million and produced nothing but a half-shrouded skeleton of glass and graffiti.

Most of its 80 luxury condominiums were pre-sold before completion. Not one was ever delivered.

And more importantly, the building cannot be finished. Not because engineers don’t know how, because the numbers will never allow it.

This is the terrible engineering behind New York City’s leaning skyscraper. To understand what went wrong, you have to understand what is under Lower Manhattan.

It isn’t ground. It is history. In the 1600s, the Dutch, who laid out Maiden Lane, did so by filling in the East River shoreline with whatever they could scrape together.

Rocks, gravel, broken pottery, the buried timbers of old wooden ships, centuries of garbage compacted into a surface strong enough to walk on, but not strong enough to carry a skyscraper.

The real ground, the ancient iron-hard bedrock called Manhattan schist, sits roughly 155 ft below.

Every serious high-rise in the financial district is anchored to it by deeply driven piles that are driven through the mud to reach the rock.

That is how it’s been done since the late 1800s. When Fortis Property Group bought the 151 161 Maiden Lane lot for $64 million in 2013, the engineering firm that they themselves hired, RA Consultants, initially recommended the same proven method.

Fortis did not use it. They chose a cheaper alternative that saved approximately $6 million on a project that it would eventually cost more than a quarter of a billion dollars.

That $6 million saving was the original sin of 161 Maiden Lane. It was the decision from which no recovery was ever possible.

>> [music] >> The alternative that Fortis chose is called jet grout soil improvement, and it is exactly what it sounds like.

Instead of drilling down to bedrock, you shoot concrete and chemical slurry into the mud at extreme pressure, trying to turn the landfill itself into a load-bearing surface.

It is the engineering equivalent of planting a flagpole in a bowl of wet cake and hoping that if you pour enough glue on top, the cake will learn to act like concrete.

The problem is the cake. 17th-century Dutch landfill is not a uniform material. It is a heterogeneous mess.

Rocks here, sand there, old ship timber somewhere else, and it doesn’t compress evenly. When the colossal weight of a 58-story tower began to press down, some pockets of fill compacted faster than others.

The north side sank. The south side held. The tilt began. The evidence is on record.

In April 2018, before the building had even topped out, concrete subcontractor RC Structures formally reported to Pizzarotti that there were structural issues.

Unusual settlement up to 3 in, and the building was leaning 3 in to the north.

By June 2019, Fortis itself notified condominium buyers that the lean had grown to approximately 8 in.

Engineer Elizabeth Molsch of Thornton Tomasetti, hired to audit the structure, wrote that the predicted settlement values had already been exceeded and that the full weight of occupation was not yet on the building.

It was still sinking. And then the builders made it worse. The ordinary response to a leaning tower during construction would be to stop construction.

Fortis didn’t stop. Instead, the contractors adopted what may be the most consequential improvisation in modern New York high-rise history.

They began pouring the upper concrete slabs deliberately out of level, tilting them slightly in the opposite direction to try to counterweight the lean from above.

Imagine noticing that your stack of books is tipping sideways and fixing it by not straightening the stack, but by gluing every new book on top at a compensating angle.

What you end up with is not a straight tower. It’s a curve. This is why in 2019, a lawyer representing Pizzarotti stood before a New York state judge and delivered the sentence that would define the project forever.

Your honor, it’s shaped like a banana right now. The proof bled into every system that depended on the building being straight.

The facade contractor reported that the curtain wall frame on the 21st floor had drifted 2 in further east than the frame on the 11th floor.

Glass panels didn’t fit. Some cracked and were removed to keep them from falling onto the street.

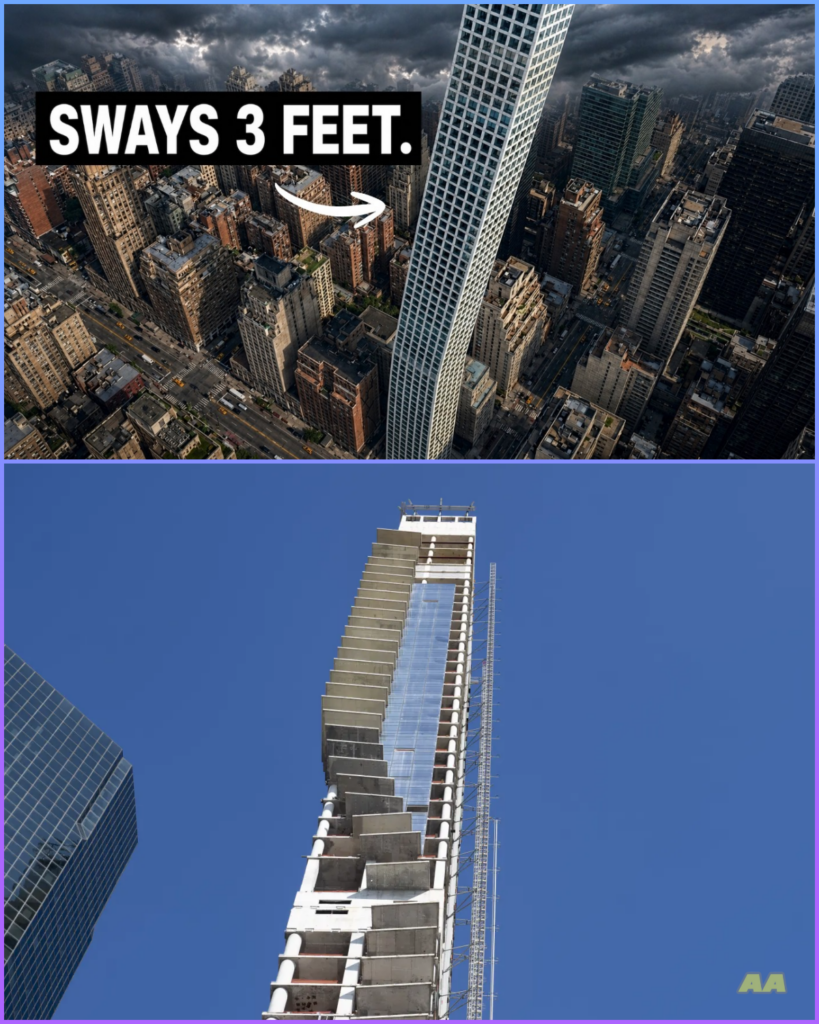

The elevator rails could no longer be installed vertically. The slosh stabilizers, the heavy counterweights designed to damp the tower’s wind-driven sway, were never put in.

The half-built building creaks in the wind on the East River, awaiting a fix that will never come.

An engineering solution for a sinking, bending skyscraper does exiSt. It’s called underpinning. New deep piles are drilled around the building’s perimeter, all the way down through 155 ft of muck to the Manhattan schiSt. The tower is then gradually transferred onto this new, real foundation, the foundation it should have had from the beginning.

It is slow, brutally expensive, and in this case, probably pointless. Just look at the numbers.

The project has already consumed approximately $250 million. A full underpinning retrofit on a tower of this size runs well into nine figures on top of that.

Now, consider the asset that you’d be repairing. 71 of the 80 pre-sold condos have been canceled.

Their buyers are in court trying to recover their deposits. Valley National Bank, which absorbed Bank Leumi’s original $120 million construction loan, has spent years trying to foreclose.

More than 1,400 documents have piled up in the New York State Supreme Court. The New Yorker reported the tower has no active security detail.

Graffiti crews have decorated its upper floors unchallenged. The question is no longer whether the building can be fixed.

The question is, who on Earth would buy a luxury condo inside a skyscraper internationally famous for being shaped like a banana?

The fixed tower would be worth a fraction of what fixing it costs. It is economically irrational to save it.

So, what was the terrible engineering behind New York City’s leaning skyscraper? Well, it wasn’t just a flawed foundation.

It was a flawed philosophy. It was a belief that four centuries of geology could be outsmarted with chemical slurry.

That warnings from paid engineering consultants were merely line items to be negotiated. That physics would quietly accept a 2.21% discount on the cost of defying it.

161 Maiden Lane will not fall over. It will simply stand. Year after year, lawsuit after lawsuit, foreclosure after mediation, until the land beneath it becomes more valuable than the cost of bringing the bent dream above it back down.

It is a 670-ft tombstone for the idea that the cheapest option is ever really the cheapest option.

A permanent crooked monument to the oldest rule in construction, gravity does not negotiate.
